what’s in LazyGrow box
A complete solution for effortless hydroponic water management, with all parts supplied—no extra purchases needed.

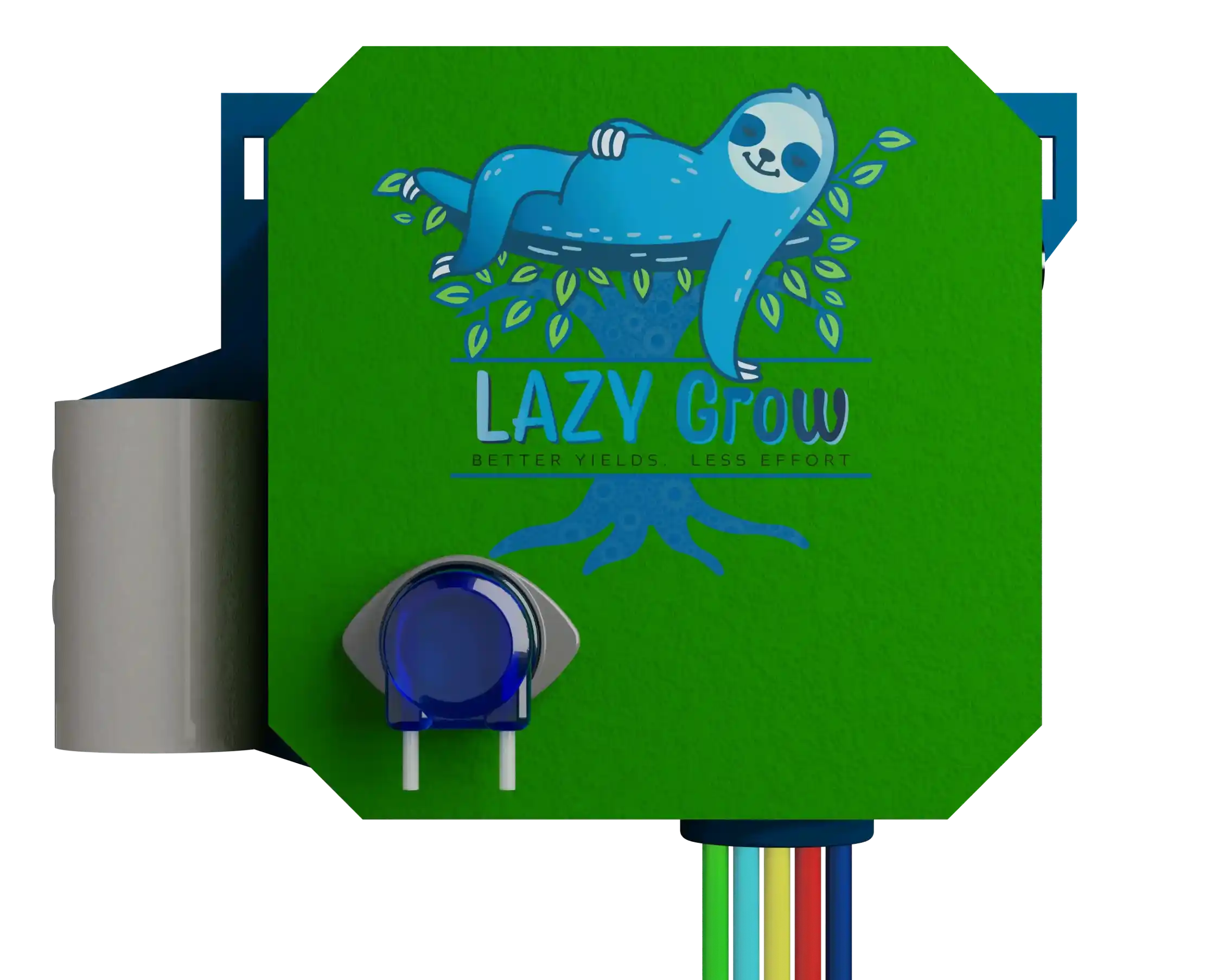

All-in-One Housing
Purpose: An all-in-one hydroponic doser to provide a simple and easy setup for you.
Specifications:
- Body Housing Material: Polyethylene Terephthalate
- Circuit board inside
- Functions: Nutrient monitoring & doser, pH monitoring & doser, auto-mixing for dosing, reservoir water refreshing & maintenance
- Human Machine Interface (HMI): Direct to your phone/tablet/computer. Allowing users to monitor and control the system within direct Wi-Fi range – provides privacy and security without a subscription service (and there never will be a subscription model)
- Provides real-time and historical data up to 100 hours (hourly), and 100 days (daily) in easy-to-understand graphs
- Troubleshooting Alerts – checks and balances are preconfigured to detect anomalies and notify the grower
- Peristaltic Pump (210ml/min): Adds 3 nutrients & pH adjuster to the reservoir
- Internally the single piece selection valve allows multiple pipes connections to a single peristaltic pump
- pH Sample Box: Isolate sample box allows for the use of cost-effective pH probes
- Hanging: Holes (+ Hooks included in the accessories)

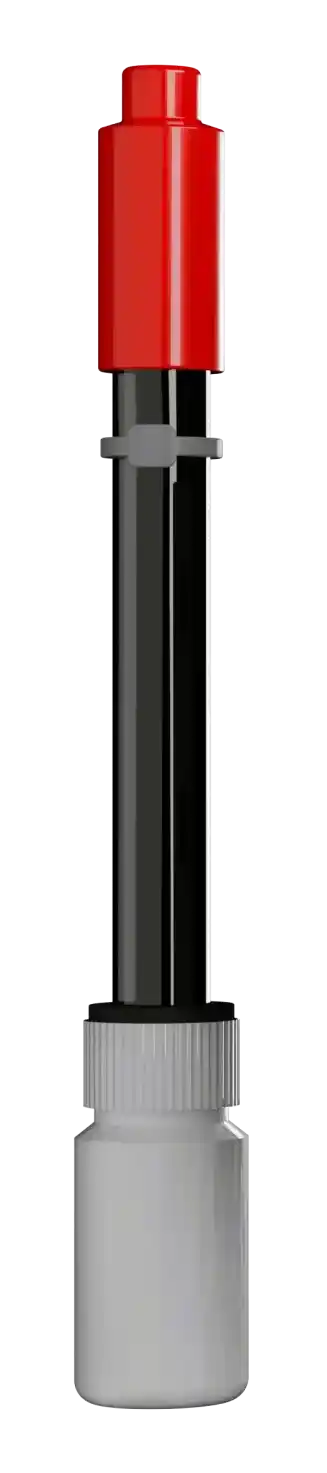

Rechargeable pH Probe
Purpose: Control feedback for the pH down/up additions via monitoring of the pH
Special Note: LazyGrow uses an isolated sample box that allows for the use of cost-effective pH probes. pH probe replacements can be purchased from anywhere online with the same connection (BNC connector).
Specifications:
- Description: Universal pH sensor
- Accuracy +/- 0.05
- Connection: BNC connector
- Cable Length: 0.6+ meters (2+ft)
- Type of probe: Non-special pH probes
- Refill Bottle: Potassium Chloride (3M KCl) solution for recharging the pH probe. This achieves probe longevity and the lowest operational cost model.
EC & Temperature Probe
Purpose: Control feedback for the Nutrient additions via monitoring of the EC mS/cm
Special Note: LazyGrow uses 5 wire industrial EC sensors with 2.25k or 10k thermistor.
Specifications:
- Description: Industrial grade EC sensor
- Sensor Body Material: Stainless Steel
- Sensor Pads: Platinum
- Internal Electrical: Potted (embedded electronics IP68)
- Accuracy: +/-0.05 and an EC range of 0.1-5.0 mS/cm (EC)
- Cable Length: 4.8+meters (16+ft)
- Temperature sensor: 2.25k thermistor – accuracy within 0.1 C, improving the accuracy of EC and pH readings
See the ‘pH & EC Maintenance Manual’ for more details

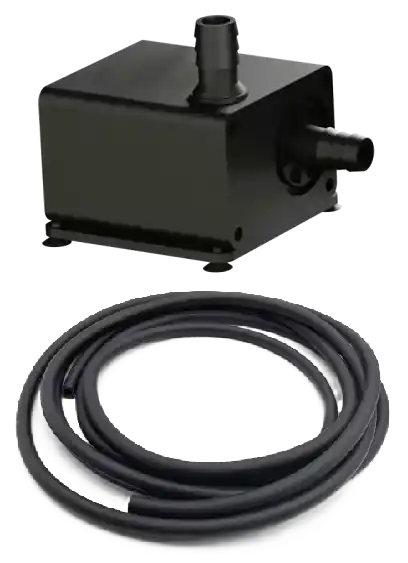

Mixing Pump
Purpose: Mixes nutrients and pH adjuster for a period of time after addition to reservoir. This ensures adequate dilution during additions to the reservoir.
Specifications:
- Pump
- Description: Brushless Motor with Magnetic Coupling Drive (Submersible Water Pump)
- Flow Rate: 400L/H
- Connection: DC 2mm 5.6mm
- Voltage: 12 V DC
- Amps: 0.85A (2A max)
- Cable Length: 1.5meters (5ft)
- Use only compatible pumps
- Note: Replacing/changing the pump, do not exceed the voltage/amps
- Pipe Size: ID7mm OD10mm flexible black rubber tubing
- 1 meter of mixing pipe
- Suction/nutrient connection cage
pH Sample Pump
Purpose: Samples water for pH probe and ensures stable pH readings.
Specifications:
- Pump
- Description: Brushless Motor with Magnetic Coupling Drive (Submersible Water Pump)
- Flow Rate: 210L/H
- Connection: USB / DC 2mm 5.6mm
- Voltage: 5-12 V DC
- Amps: 0.4A (1A max)
- Cable Length: 1.5meters (5ft)
- Use only compatible pumps
- Note: Replacing/changing the pump, do not exceed the voltage/amps
- Pipe Size: ID7mm OD10mm flexible black rubber tubing
- 2 meters of sample pipe
- 1.5 meters of returning pipe

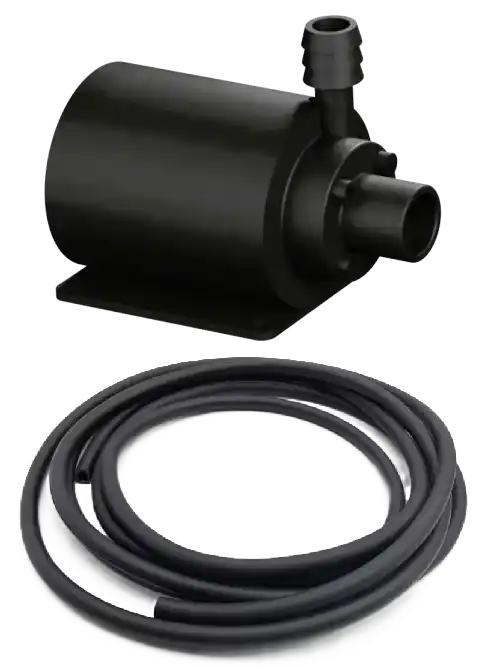

Water Out Pump
Purpose: To prevent nutrient build-up (lock-out) & maintains water freshness
Specifications:
- Pump
- Description: Brushless Motor with Magnetic Coupling Drive (Submersible Water Pump)
- Flow Rate: 800L/H
- Connection: DC 2mm 5.6mm
- Voltage: 12 V DC
- Amps: 1.6A (2A max)
- Cable Length: 3meters (10ft)
- Use only compatible pumps
- Note: Replacing/changing the pump, do not exceed the voltage/amps
- Pipe Size: ID10mm OD14mm flexible black rubber tubing
- 4 meters of water out piping
- Anti-syphoning mechanism + 1 meter of piping to the pump

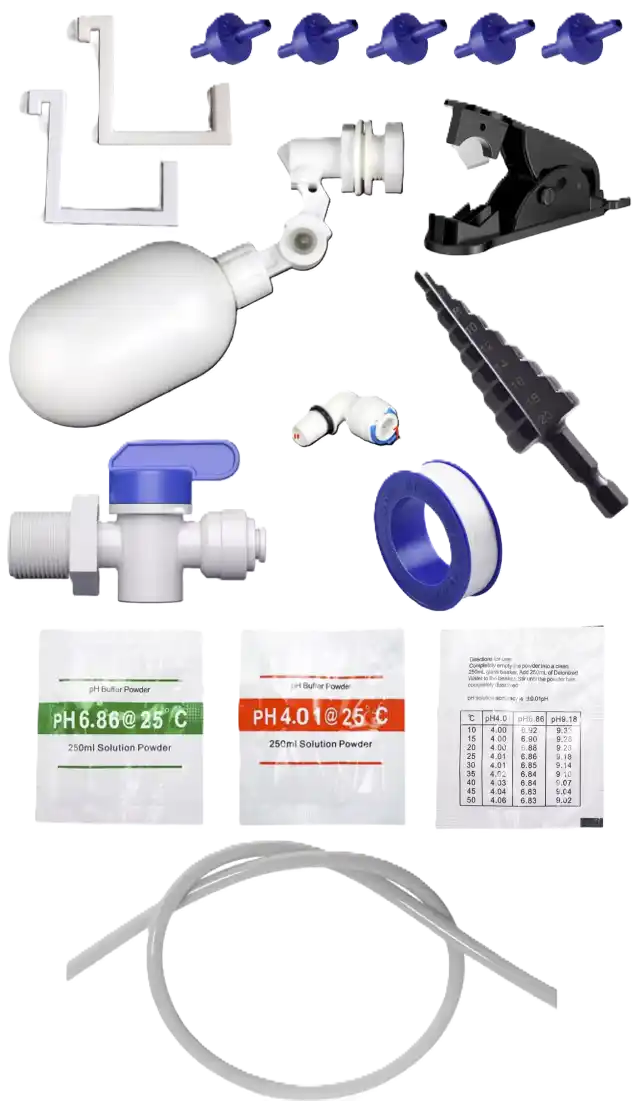

Accessories
Purpose: To prevent nutrient build-up (lock-out) & maintains water freshness
Specifications:
- Ball Float Refill: ~16mm hole compression seal
- Pipe Fitting 1/4 inch quick fit
- 1 meter of 1/4 inch white water pipe
- Isolation valve & tank fitting
- Pipe Fitting 1/4 inch quick fit
- Reservoir Tank Connection: 13mm (1/2 inch) with ~16mm hole compression seal
- Multi-step Drill Piece (4mm to 20mm)
- Housing Hooks
- pH calibration buffers
- One-way valves (spare extras)
- Pipe cutter
- Thread tape
Power Supply
Special Note: Single body power supply to help keep all your main the electrical connections in 1 location
Specifications:
- Voltage: 12 V DC
- Amps: 5A
- Connection: DC 2mm 5.6mm
- Cable length: 1.8+meters (6+ft)
- Power Plug: As per destination country
See the ‘LazyGrow Setup Manual’ for more details
